Description
1. Wall Plate Dimensions (Backplate)
The plate that bolts directly onto your wall has the following spacing dimensions: Total Height: 115 mm (approx. 4.5 inches)
- Total Width: 65 mm
- Horizontal Hole Distance: 47 mm center-to-center
- Vertical Hole Distance: 88 mm center-to-center
- Screw Hole Diameter: 6.2 mm (Requires an 8 mm masonry drill bit for the included plastic wall plugs).
2. Display Bracket Dimensions (Frontplate)
The wing-shaped interface plate that attaches to your screen matches universal VESA standards:
- Total Width: 115 mm
- Small VESA Pattern Layout: 75 mm × 75 mm
- Large VESA Pattern Layout: 100 mm × 100 mm
- Slotted Screwholes: Accommodates standard M4 and M5 size monitor screws.
3. Depth & Clearance Profile
- Distance From Wall: 110 mm (approx. 4.3 inches) when extended straight out.
4. Ideal Height Guide
- Recommended Placement: Position the absolute center of the bracket 1 to 1.2 meters (approx. 40 to 47 inches) off the floor surface. This aligns the center of a compact 14″–24″ display closely with standard eye-level view lines while sitting.
Additional information

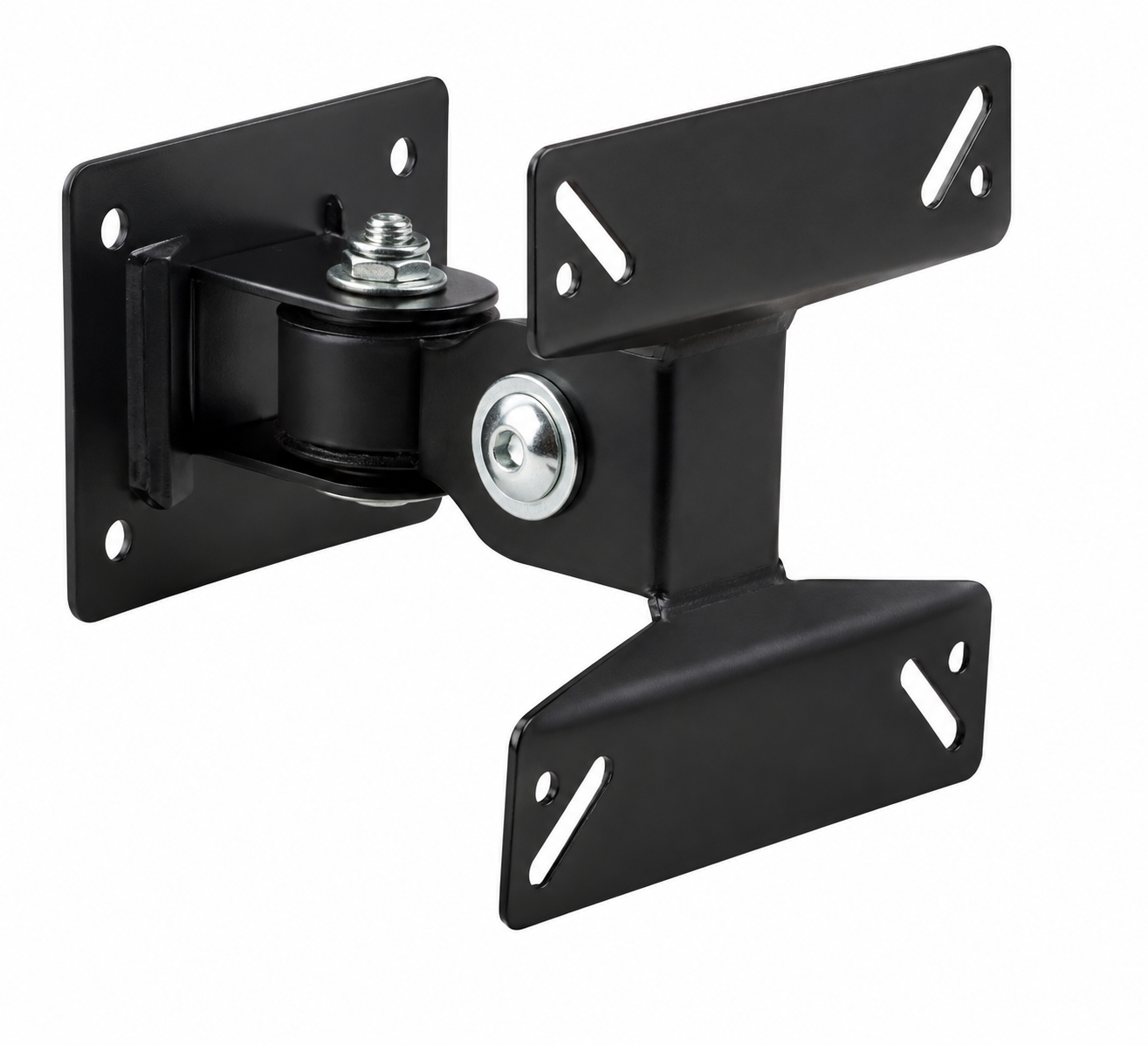

Universal Full-Motion (Tilt & Swivel) TV / Monitor Wall Mount Bracket
Core Specifications
- Compatible Screen Sizes: Most 14″ to 24″ (some variants support up to 27″) flat-panel LED, LCD, and PC monitors.
- Maximum Load Capacity: 10 kg to 15 kg (approx. 22 lbs to 33 lbs).
- Material: Heavy-duty SPCC cold-rolled steel construction.
- Surface Finish: Anti-scratch black powder coating.
රු1,000.00
or 3 X රු333.33 with
Islandwide Delivery
Enjoy convenient islandwide delivery, with orders arriving within 4–5 working days.
