Description
🧱 Wall Base Footprint (Single Stud Plate)
- Total Height: ~120 mm
- Total Width: ~55 mm
- Mounting Layout: Vertically aligned single-stud or solid wall design. It features 3 primary anchoring holes (top, middle, and bottom) stacked vertically to ensure strong alignment.
📐 Profile Depth & Extension Range
- Minimum Profile (Fully Retracted): ~50 mm to 60 mm depth from the wall when collapsed completely flat.
- Maximum Arm Extension: ~280 mm to 300 mm straight outward extension when the single articulating arm assembly is fully extended.
🔄 Rotation & Tilt Clearance
- Tilt Pitch: +15° to -15° vertical tilting range [qHZn-d.png].
- Horizontal Swivel: Full 180° side-to-side articulation [qHZn-d.png].
- Note: Because this mount holds compact screens up to 32 inches, standard smaller monitor sizes can easily achieve the full 180-degree pivot without the edges of the display hitting the wall frame.
🔩 VESA TV / Monitor Interface Plate
The butterfly-style mounting plate matches standard small-to-mid size configurations:
- Minimum VESA Pattern: 75 mm x 75 mm
- Maximum VESA Pattern: 100 mm x 100 mm (also conforms to common intermediate small layouts)
🛠️ Hardware Requirements
- Concrete / Solid Brick Walls: Requires drilling holes with an 8 mm masonry drill bit to insert the plastic wall plugs.
- Timber Stud Walls: Requires pre-drilling vertical pilot holes into the center of a single wooden stud using a 3.5 mm wood drill bit before driving in the mounting lag screws.
Additional information

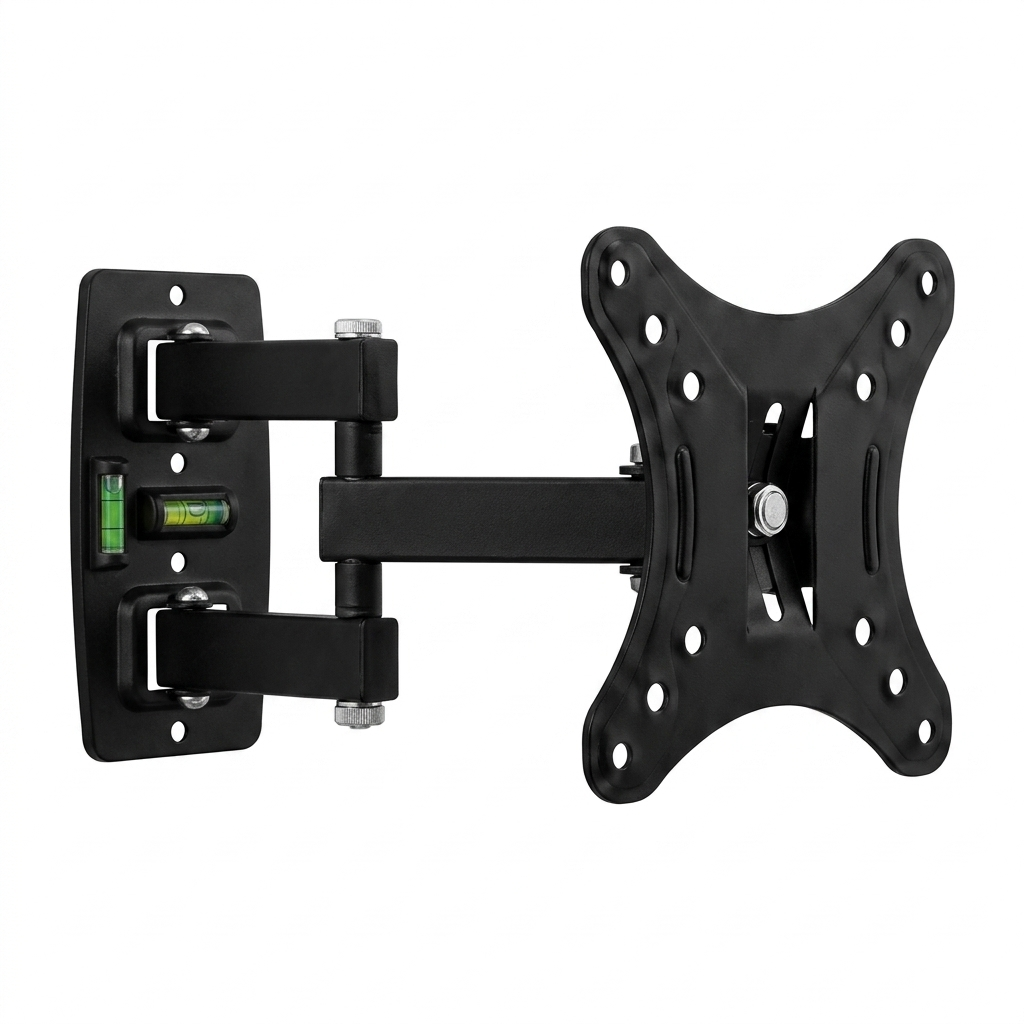

Model HY210 Articulating TV Bracket
- Supported Screen Sizes: 10″ – 32″ (LED, LCD, Plasma, and Smart TVs / PC Monitors) [qHZn-d.png]
- Maximum Weight Capacity: Up to 20 kg (44 lbs) [qHZn-d.png]
- Material: Durable, high-quality cold-rolled steel construction [qHZn-d.png]
- Full-Motion Adjustability:
- Tilt Angle: +15° to -15° vertical tilt range to optimize viewing angles and eliminate glare [qHZn-d.png]
- Swivel Range: Full 180° horizontal pivot articulation [qHZn-d.png]
- VESA Mounting Compatibility: Universal VESA compliant pattern layout [qHZn-d.png]
- Installation System: “EZ” Easy & Fast single-stud or solid wall mounting setup [qHZn-d.png]
රු1,000.00
or 3 X රු333.33 with
Islandwide Delivery
Enjoy convenient islandwide delivery, with orders arriving within 4–5 working days.
