Model HD602B (26″ – 63″ configuration) tilting flat-panel TV wall mount bracket
රු1,000.00
or 3 X රු466.67 with
Model CP502 Full-Motion TV Bracket
රු4,000.00
or 3 X රු466.67 with
Description
🧱 Wall Plate Footprint
- Total Width: ~880 mm to 920 mm (Extra-wide to span safely across multiple standard 16-inch or 24-inch wooden wall studs).
- Total Height: ~220 mm
- Mounting Flexibility: Wide slot spacing across the plate allows you to shift the frame horizontally to center the TV, even if your wall studs aren’t perfectly centered.
📐 Profile Depth & Tilt Clearance
- Distance from Wall (Flush): ~35 mm to 45 mm (roughly 1.4 to 1.8 inches).
- Note: Because this model handles massive 80″+ screens, the slight extra depth is necessary to provide mechanical clearance for the downward tilt mechanism without the bottom of your TV hitting the wall.
🔩 VESA TV Interface Rails
The two vertical mounting arms that secure to the back of your television measure:
- Rail Height: ~630 mm vertical length.
- Minimum VESA Pattern: 200 mm x 200 mm [27basr.png]
- Maximum VESA Pattern: 800 mm x 600 mm [27basr.png]
🛠️ Hardware & Drilling Requirements
- Solid Concrete / Brick Walls: A minimum of 6 heavy-duty anchor bolts using a 10 mm masonry drill bit is highly recommended due to the sheer size of the TV.
- Drywall / Timber Studs: Must be anchored into at least two separate wooden studs (three if available) using heavy-duty lag screws. Pre-drill pilot holes using a 4.5 mm wood drill bit.
Additional information

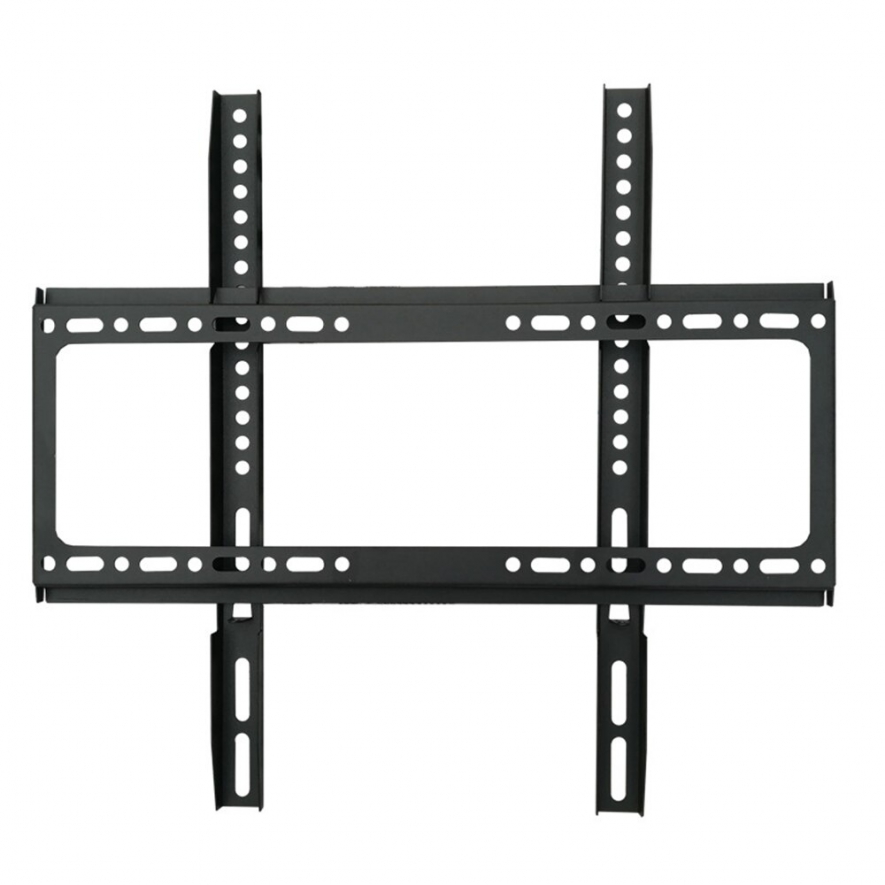

Model HD602B (80″ – 85″ configuration) heavy-duty tilting TV wall mount bracket
රු1,400.00
or 3 X රු466.67 with
- upported Screen Sizes: 80″ – 85″ (LED, LCD, and PDP flat panels)
- Maximum Weight Capacity: Up to 75 kg (165 lbs)
- Material: Thick gauge reinforced cold-rolled steel construction
- Motion Capability: Upward/downward vertical tilt alignment
- VESA Mounting Compatibility:
- 200mm x 200mm
- 600mm x 600mm
- 800mm x 600mm (Vertical/Horizontal configuration max)
- Wall Anchoring: Dual or triple timber wall stud spacing and solid concrete installation
Warranty
We provide a comprehensive 2-year warranty covering manufacturing defects and material failures.
Every blade undergoes rigorous quality control to ensure long-lasting performance and structural integrity.
Shipping & 30 Days Return
Worldwide tracked delivery. Dispatched within 24 hours of order confirmation.
Not satisfied? Return any item within 30 days for a full refund, no questions asked.
Specification
Full technical details and material specifications are listed below.
The following collection features premium tools engineered from aerospace-grade titanium and high-tenacity Cordura to ensure peak mechanical performance and unwavering reliability in your daily professional carry.
